תכירו מקרוב - Cocktail audio X45Pro

הנושא בפורום 'חדשות מוצרים' פורסם ע"י or-audio, ‏30/11/19.

  1. or-audio

    or-audio עוסק בתחום

    הצטרף:
    ‏3/5/14
    הודעות:
    198
    לייקים:
    147

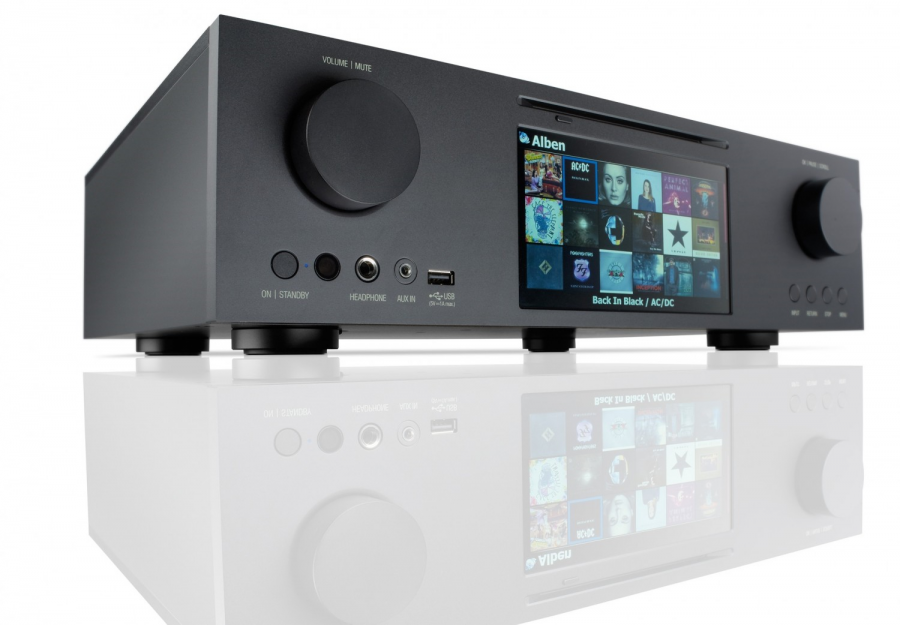

    תכירו מקרוב : Cocktail audio X45Pro

    [​IMG]




    Offering reference level sound quality and support for various hi-res audio formats - MQA, DSD(64/128/256/512), DXD(24Bit/352.8KHz), PCM signalup to 32Bit/768Khz including FLAC(24Bit/192KHz), and WAV(24Bit/192KHz),
    ....... and many more​

    לרשימת המוצרים של החברה , כנסו לאתר שלנו:
    www.or-audio.co.il


    0528833339
    www.or-audio.co.il
    Facebook
    https://www.facebook.com/OraudioIsrael



    [​IMG]

    Model name cocktailAudio X45Pro

    Host CPU & Memory CPU : Quad Core ARM Cortex A9 running at 1.0GHz
    Main Memory : DDR-1066 1GByte
    NAND Flash 8GByte

    CD Player Type Front Loading
    Supported media CD, CD-DA, CD-R, CD-RW, DVD-R/RW

    Display 7.0" TFT LCD(1,024 x 600pixels)(* able to connect to ext. screen via HDMI out)

    Interface Key & Jog(Volume/Scroll), IR Remote Control, Customized Remote App for iOS and Android devices, Web Interface

    Analog Out
    (SABRE Flagship ES9038PRO DAC) Balanced(PRE-OUT) XLR, Dynamic Range: 137dB (Max 6.5Vrms, Stereo) THD +N: 0.0003%​

    Unbalanced(PRE-OUT) RCA, Dynamic Range: 137dB (Max 2Vrms, Stereo) THD +N: 0.0003%
    Headphone Out 6.35mm Jack, 100mW+100mW@1Khz, 600ohm, 0.006% THD

    Digital out
    (Variable/Fixed) COAXIAL x 1 S/PDIF 75ohm RCA, Sample rate: up to 24bit/192KHz​

    TOSLINK x 1 S/PDIF, Sample rate: up to 24bit/192KHz
    AES/EBU/XRL x 1 110ohm, Sample rate: up to 24bit/192KHz
    USB Audio x 1 USB Audio Class 2.0 Output
    HDMI Out x 1 HDMI Audio Out(*Shared with HDMI Out for external screen)

    Analog Input LINE In x 1 L&R RCA at the rear, default 2Vrms(controllable 1~4Vrms)
    Aux In x 1 3.5mm Phone Jack on the front, default 1Vrms(controllable 0.5~2Vrms)
    Phono In x 1 MM Input, default 7.5mVrms(controllable 3.75~15mVrms)

    Digital Input COAXIAL x 1 Sample Rate: up to 24bit/192Khz
    TOSLINK x 1 Sample Rate: up to 24bit/192Khz
    AES/EBU XLR x 1 Sample Rate: up to 24bit/192Khz

    USB Audio Input
    (USB DAC) USB B type connector, USB Audio Class 2.0 input​

    (support up to PCM 768Khz/32Bit, DSD Native 512, and MQA file)

    Supported Storage Hard Disk 2.5" SATA, up to 2TB * Bigger capacity of storage will be supported by firmware update when available in the market
    SSD 3.5" SATA, up to 8TB
    SSD 2.5" SATA, up to 2TB

    Tuner DAB+/FM Selectable for DAB/DAB+ or FM Radio

    Connectivity USB Host USB3.0(5V/1A) x 2 at rear
    USB2.0(5V/1A) x 1 at front
    Network Wired Giga Fast Ethernet(10/100/1000Mbs)
    Wireless(Option) ※ 802.11b/g/n WiFi USB dongle(Option)
    HDMI Out Connect to external screen(* Shared with HDMI Audio Out)

    Codec&Format supported MQA, PCM 768Khz/32Bit, DSD(DSD64, DSD128, DSD256, *DSD512), DXD(24Bit/352.8KHz), HD WAV(24Bit/192KHz), HD FLAC(24Bit/192KHz), APE/CUE, WAV, FLAC, ALAC, AIFF, AIF, AAC, M4A, MP3, WMA, CAF, Ogg Vorbis, PCM, M3U, PLS, etc
    (* Note : DSD512 is supported by Analog Out only)

    Network Protocols
    Supported UPnP(DLNA) Server/Client/Media Renderer, Samba Server/Client, FTP Server, Web Server, etc

    Internet
    Services Internet Radio Airable​

    Online Music Services TIDAL, TIDAL MQA, Deezer, Qobuz, Napster, Spotify Connect
    (* Note: Amazon Music will be available via firmware update)

    Supported OSD languages English, German, French, Spanish, Italian, Polish, Dutch, Russian, Traditional Chinese, Korean,(To be added by request)

    Isolated Power management Toroidal Transformer For audio signal management Toroidal & SMPS are shielded to minimize electrical noise
    70W internal SMPS For digital CPU management

    12V Trigger Out Max 200mA, 12V

    Power Source 220V area AC 220V - 240V, 50/60Hz
    110V area AC 110V - 120V, 50/60Hz

    Mechanical Material Whole chassis is based on CNC-machined high quality aluminum
    Dimension Without foot 440mm(W) x 329mm(D) x 118mm(H)
    With foot 440mm(W) x 329mm(D) x 130mm(H)
    Weight 13.2Kg (Device only without accessory and carton box)



    תמונות מצורפות:

  2. ayal30

    ayal30 חבר משקיען

    הצטרף:
    ‏11/8/13
    הודעות:
    1,066
    לייקים:
    273
    וואוו איזה סטרימר ברמה הלוואי עלי :בעד:

    ostrer73 אוהב/ת את זה.
